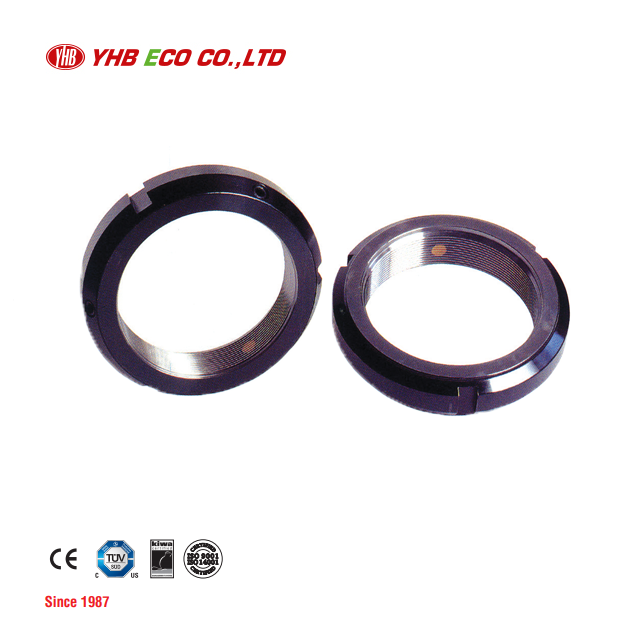

YHB 정밀로크너트 HB24(M120X2)
ㅁ Features
- Material : DIN C45, JIS S45C, KS SM45C
- Hardness : HRC 20 ~ 25
- Nut Grade : Precision class
- Squarness of Nut Face : ⊥0.002~0.015
ㅁ Advantages
1. Thanks to enhanced flatness and roughness of reference plane by lapping work, YHB thpe fits
in shaft build-up which requires hight fixing dedree.
2. Three locking pins located in equal intervals enable the nut to be assembled with the
shaft exactly at appropriate angle and adjust the deviation properly.
3, Keeps a good balance thanks to the equal interval fluting of lock pin and hook spanner.
- Material : DIN C45, JIS S45C, KS SM45C
- Hardness : HRC 20 ~ 25
- Nut Grade : Precision class
- Squarness of Nut Face : ⊥0.002~0.015
ㅁ Advantages
1. Thanks to enhanced flatness and roughness of reference plane by lapping work, YHB thpe fits
in shaft build-up which requires hight fixing dedree.
2. Three locking pins located in equal intervals enable the nut to be assembled with the
shaft exactly at appropriate angle and adjust the deviation properly.
3, Keeps a good balance thanks to the equal interval fluting of lock pin and hook spanner.
79,442원
배송비
-
수량
주문 수량
0개
총 상품 금액
0원
쉽고 빠른
토스페이 간편결제
토스페이 간편결제
제품사양
|
PART NO |
THREAD & PITCH |
Dimension |
Axial Load (KN) |
Set Screw (Nm) |
Weight (g) |
|||||||||
|
d1 |
b2 |
d3 |
d4 |
B |
g |
t |
m |
m |
m |
|||||
|
HB 05 |
M 25×1.5 |
33.5 |
42 |
35 |
26 |
20 |
32.5 |
11 |
4.3 |
5 |
M6 |
130 |
8 |
120 |
|
HB 06 |
M 30×1.5 |
39 |
48 |
40 |
32 |
20 |
40.5 |
11 |
4.3 |
5 |
M6 |
160 |
8 |
150 |
|
HB 07 |
M 35×1.5 |
44 |
53 |
47 |
38 |
20 |
45.5 |
11 |
4.3 |
5 |
M6 |
190 |
8 |
180 |
|
HB 08 |
M 40×1.5 |
49 |
58 |
52 |
42 |
22 |
50.5 |
12 |
4.3 |
5 |
M6 |
210 |
8 |
210 |
|
HB 09 |
M 45×1.5 |
56.5 |
68 |
58 |
48 |
22 |
58 |
12 |
4.3 |
5 |
M6 |
240 |
8 |
300 |
|
HB 10 |
M 50×1.5 |
60 |
70 |
63 |
52 |
24 |
61.5 |
12 |
4.3 |
5 |
M6 |
300 |
8 |
310 |
|
HB 11 |
M 55×1.5 |
65 |
75 |
70 |
58 |
24 |
66.5 |
13 |
4.3 |
5 |
M6 |
340 |
8 |
350 |
|
HB 12 |
M 60×1.5 |
72 |
84 |
75 |
62 |
24 |
74.5 |
13 |
5.3 |
5 |
M6 |
380 |
8 |
450 |
|
HB 13 |
M 65×1.5 |
76 |
88 |
80 |
68 |
25 |
78.5 |
13 |
5.3 |
5 |
M6 |
460 |
8 |
480 |
|
HB 14 |
M 70×1.5 |
83 |
95 |
86 |
72 |
26 |
85 |
14 |
5.3 |
7.9 |
M10 |
490 |
18 |
570 |
|
HB 15 |
M 75×1.5 |
88 |
100 |
91 |
77 |
26 |
88 |
13 |
6.4 |
7.9 |
M10 |
520 |
18 |
610 |
|
HB 16 |
M 80 × 2 |
96 |
110 |
97 |
83 |
30 |
95 |
16 |
6.4 |
7.9 |
M10 |
620 |
18 |
910 |
|
HB 17 |
M 85 × 2 |
100 |
115 |
102 |
88 |
32 |
100 |
17 |
6.4 |
9.6 |
M12 |
650 |
35 |
1050 |
|
HB 18 |
M 90 × 2 |
105 |
120 |
110 |
93 |
32 |
108 |
17 |
6.4 |
9.6 |
M12 |
680 |
35 |
1100 |
|
HB 19 |
M 95 × 2 |
110 |
125 |
114 |
98 |
32 |
113 |
17 |
6.4 |
9.6 |
M12 |
710 |
35 |
1150 |
|
HB 20 |
M 100×2 |
115 |
130 |
120 |
103 |
32 |
118 |
17 |
6.4 |
9.6 |
M12 |
740 |
35 |
1200 |
|
HB 22 |
M 110×2 |
128 |
140 |
132 |
112 |
32 |
128 |
17 |
6.4 |
9.6 |
M12 |
800 |
35 |
1350 |
|
HB 24 |
M 120×2 |
138 |
155 |
142 |
122 |
32 |
140 |
17 |
6.4 |
9.6 |
M12 |
860 |
35 |
1700 |
|
HB 26 |
M 130×3 |
148 |
165 |
156 |
132 |
32 |
153 |
17 |
6.4 |
9.6 |
M12 |
920 |
35 |
1900 |
|
HB 28 |
M 140×3 |
160 |
180 |
166 |
142 |
32 |
165 |
17 |
6.4 |
9.6 |
M12 |
980 |
35 |
2250 |
|
HB 30 |
M 150×3 |
173 |
195 |
180 |
152 |
32 |
175 |
17 |
6.4 |
9.6 |
M12 |
1040 |
35 |
2450 |
|
HB 32 |
M 160×3 |
182 |
205 |
190 |
162 |
32 |
185 |
17 |
8.4 |
9.6 |
M12 |
1100 |
35 |
2900 |
|
HB 34 |
M 170×3 |
192 |
215 |
205 |
172 |
32 |
195 |
17 |
8.4 |
9.6 |
M12 |
1160 |
35 |
3150 |
|
HB 36 |
M 180×3 |
205 |
230 |
215 |
182 |
32 |
210 |
17 |
8.4 |
9.6 |
M12 |
1220 |
35 |
3650 |
|
HB 38 |
M 190×3 |
215 |
240 |
225 |
192 |
32 |
224 |
17 |
8.4 |
9.6 |
M12 |
1280 |
35 |
3850 |
|
HB 40 |
M 200×3 |
223 |
245 |
237 |
202 |
32 |
229 |
17 |
8.4 |
9.6 |
M12 |
1340 |
35 |
3700 |
