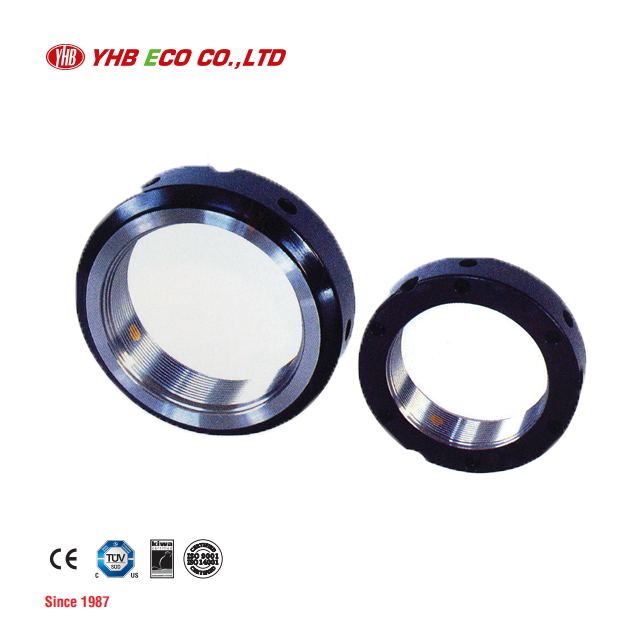

YHB 정밀로크너트 SWLN28(M140× 3)

ㅁ Features
- Material : DIN C45, JIS S45C, KS SM45C
- Hardness : HRC 20 ~ 25
- Nut Grade : Precision class
- Squarness of Nut Face : ⊥0.002~0.015

ㅁ Advantages
- Be able to adjust deviation by exactly erecting a nut with locking pins
located at three equal intervals.

- No need for a lock washer or fluting of shaft key

137,759원

배송비 -

수량

주문 수량 0개

총 상품 금액 0원

쉽고 빠른
토스페이 간편결제

제품사양

PART NO	THREAD & PITCH	Dimension										Axial Load (KN)	Weight (g)
PART NO	THREAD & PITCH	d2	d3	d4	B	j1	j2	N1	N2	m	Torque (Nm)	Axial Load (KN)	Weight (g)
SWLN 04	M 20 × 1.0	38	30	21	18	29	10	4.3	4	M6	8	110	100
SWLN 05	M 25 × 1.5	42	35	26	20	32.5	11	4.3	4	M6	8	130	120
SWLN 06	M 30 × 1.5	48	40	31	20	40.5	11	4.3	5	M6	8	160	150
SWLN 07	M 35 × 1.5	53	47	36	20	45.5	11	4.3	5	M6	8	190	180
SWLN 08	M 40 × 1.5	58	52	41	22	50.5	12	4.3	5	M6	8	210	210
SWLN 09	M 45 × 1.5	68	58	46	22	58	12	4.3	6	M6	8	240	300
SWLN 10	M 50 × 1.5	70	63	51	24	61.5	13	4.3	6	M6	8	300	310
SWLN 11	M 55 × 1.5	75	70	57	24	66.5	13	4.3	6	M6	8	340	350
SWLN 12	M 60× 1.5	84	75	62	24	74.5	13	5.3	6	M6	8	380	450
SWLN 13	M 65 × 1.5	88	80	67	25	78.5	13	5.3	6	M6	8	460	480
SWLN 14	M 70 × 1.5	95	86	72	26	85	14	5.3	8	M8	18	490	570
SWLN 15	M 75 × 1.5	100	91	77	26	88	13	6.4	8	M8	18	520	610
SWLN 16	M 80 × 2	110	97	82	30	95	16	6.4	8	M8	18	620	910
SWLN 17	M 85 × 2	115	102	87	32	100	17	6.4	8	M10	35	650	1050
SWLN 18	M 90 × 2	120	110	92	32	108	17	6.4	8	M10	35	680	1100
SWLN 19	M 95 × 2	125	114	97	32	113	17	6.4	8	M10	35	710	1150
SWLN 20	M 100 × 2	130	120	102	32	118	17	6.4	8	M10	35	740	1200
SWLN 22	M 110 × 2	140	132	112	32	128	17	6.4	8	M10	35	800	1350
SWLN 24	M 120 × 2	155	142	122	32	140	17	6.4	8	M10	35	860	1700
SWLN 26	M 130 ×3	165	156	132	32	153	17	6.4	8	M10	35	920	1900
SWLN28	M 140 × 3	180	166	142	32	165	17	6.4	10	M10	35	980	2250
SWLN 30	M 150 × 3	190	180	152	32	175	17	6.4	10	M10	35	1040	2450
SWLN 32	M 160 × 3	205	190	162	32	185	17	8.4	10	M10	35	1100	2900
SWLN 34	M 170 × 3	215	205	172	32	195	17	8.4	10	M10	35	1160	3150
SWLN 36	M 180 × 3	230	215	182	32	210	17	8.4	10	M10	35	1220	3650
SWLN 38	M 190 × 3	240	225	192	32	224	17	8.4	10	M10	35	1280	3850
SWLN 40	M 200 × 3	245	237	202	32	229	17	8.4	10	M10	35	1340	3700
