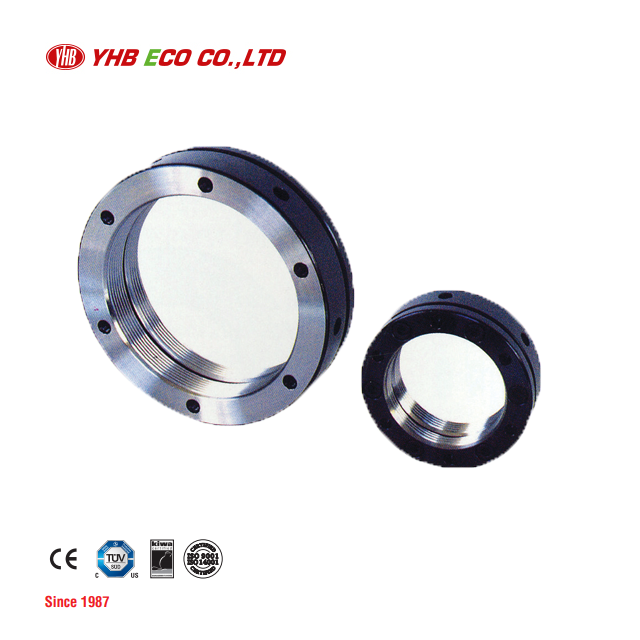

YHB 정밀로크너트 YAN(24 X 1.5), (M4 X 12)
ㅁ Features
- Material : DIN C45, JIS S45C, KS SM45C
- Hardness : HRC 20 ~ 25
- Nut Grade : Precision class
- Squarness of Nut Face : ⊥0.002~0.015
ㅁ Advantages
1. Preload and tension can be adjusted.
2. Tolerative with vibration.(shake, oscillation)
3. Locking washers, slots in the shaft are not needed.
- Material : DIN C45, JIS S45C, KS SM45C
- Hardness : HRC 20 ~ 25
- Nut Grade : Precision class
- Squarness of Nut Face : ⊥0.002~0.015
ㅁ Advantages
1. Preload and tension can be adjusted.
2. Tolerative with vibration.(shake, oscillation)
3. Locking washers, slots in the shaft are not needed.
15,433원
배송비
-
수량
주문 수량
0개
총 상품 금액
0원
쉽고 빠른
토스페이 간편결제
토스페이 간편결제
제품사양
|
PART NO |
Dimension |
HOLES |
TIGHT BOLT |
ReleaseTorgue |
Allowble Axal Load |
Weight (g) |
|||||||
|
d2 |
d3 |
d4 |
d5 |
B |
i |
Thread& Length |
bolts |
torque |
|||||
|
YAN 16 × 1.5 |
34 |
4 |
24.5 |
4.3 |
18 |
4.5 |
4 |
M4 × 12 |
4 |
0.29 |
340 |
22 |
80 |
|
YAN 18 × 1.5 |
36 |
4 |
26.5 |
4.3 |
18 |
4.5 |
4 |
M4 × 12 |
4 |
0.29 |
370 |
24 |
87 |
|
YAN 20 × 1.5 |
40 |
4 |
30.5 |
4.3 |
18 |
4.5 |
4 |
M4 × 12 |
4 |
0.29 |
400 |
27 |
107 |
|
YAN 22 × 1.5 |
40 |
4 |
30.5 |
4.3 |
18 |
4.5 |
4 |
M4 × 12 |
4 |
0.29 |
420 |
30 |
100 |
|
YAN 24 × 1.5 |
42 |
4 |
32.5 |
4.3 |
18 |
4.5 |
4 |
M4 × 12 |
4 |
0.29 |
440 |
33 |
107 |
|
YAN 25× 1.5 |
45 |
5 |
36.5 |
4.3 |
20 |
6.0 |
4 |
M4 × 12 |
4 |
0.29 |
450 |
45 |
137 |
|
YAN 28 × 1.5 |
46 |
5 |
38.5 |
4.3 |
20 |
6.0 |
4 |
M4 × 12 |
4 |
0.29 |
480 |
50 |
136 |
|
YAN 30 × 1.5 |
48 |
5 |
40.5 |
4.3 |
20 |
6.0 |
4 |
M4 × 12 |
4 |
0.29 |
500 |
55 |
141 |
|
YAN 32 × 1.5 |
50 |
5 |
42.5 |
4.3 |
22 |
7 |
4 |
M4 × 16 |
4 |
0.29 |
520 |
61 |
163 |
|
YAN 35 × 1.5 |
53 |
5 |
45.5 |
4.3 |
22 |
7 |
4 |
M4 × 16 |
4 |
0.29 |
550 |
62 |
175 |
|
YAN 38 × 1.5 |
58 |
5 |
48.5 |
4.3 |
22 |
7 |
4 |
M4 × 16 |
4 |
0.29 |
580 |
72 |
212 |
|
YAN 40 × 1.5 |
58 |
5 |
50.5 |
4.3 |
22 |
7 |
4 |
M4 × 16 |
4 |
0.29 |
600 |
63 |
195 |
|
YAN 42 × 1.5 |
60 |
5 |
52.5 |
4.3 |
22 |
7 |
4 |
M4 × 16 |
4 |
0.29 |
620 |
63 |
204 |
|
YAN 45 × 1.5 |
68 |
6 |
58 |
4.3 |
22 |
6.0 |
6 |
M4 × 16 |
6 |
0.29 |
1070 |
80 |
288 |
|
YAN 48 × 1.5 |
68 |
6 |
59.5 |
4.3 |
25 |
9 |
6 |
M4 × 18 |
6 |
0.29 |
1180 |
90 |
294 |
|
YAN 50 × 1.5 |
70 |
6 |
61.5 |
4.3 |
25 |
9 |
6 |
M4 × 18 |
6 |
0.29 |
1250 |
90 |
303 |
|
YAN 52 × 1.5 |
72 |
6 |
63.5 |
4.3 |
25 |
9 |
6 |
M4 × 18 |
6 |
0.29 |
1300 |
90 |
314 |
|
YAN 55 × 1.5 |
75 |
6 |
66.5 |
4.3 |
25 |
9 |
6 |
M4 × 18 |
6 |
0.29 |
1410 |
90 |
327 |
|
YAN 58 × 1.5 |
82 |
6 |
72.5 |
5.3 |
26 |
9 |
6 |
M5 × 18 |
6 |
0.6 |
2100 |
158 |
446 |
|
YAN 60 × 1.5 |
84 |
6 |
74.5 |
5.3 |
26 |
9 |
6 |
M5 × 18 |
6 |
0.6 |
2200 |
159 |
479 |
|
YAN 62 × 1.5 |
86 |
6 |
76.5 |
5.3 |
28 |
10.5 |
6 |
M5 × 20 |
6 |
0.6 |
2310 |
180 |
505 |
|
YAN 65 × 1.5 |
88 |
6 |
78.5 |
5.3 |
28 |
10.5 |
6 |
M5 × 20 |
6 |
0.6 |
2470 |
170 |
500 |
|
YAN 68 × 1.5 |
95 |
8 |
83 |
5.3 |
28 |
9.5 |
6 |
M5 × 20 |
6 |
0.6 |
2620 |
215 |
625 |
|
YAN 70 × 1.5 |
95 |
8 |
85 |
5.3 |
28 |
9.5 |
6 |
M5 × 20 |
6 |
0.6 |
2730 |
200 |
536 |
|
YAN 72 × 1.5 |
98 |
8 |
86 |
6.4 |
28 |
8.5 |
6 |
M6 × 20 |
6 |
1.0 |
3640 |
158 |
626 |
|
YAN 75 × 1.5 |
100 |
8 |
88 |
6.4 |
28 |
8.5 |
6 |
M6 × 20 |
6 |
1.0 |
3750 |
200 |
623 |
|
YAN 80 × 2.0 |
110 |
8 |
95 |
6.4 |
32 |
11 |
6 |
M6 × 22 |
6 |
1.0 |
3900 |
169 |
890 |
|
YAN 85 × 2.0 |
115 |
8 |
100 |
6.4 |
32 |
11 |
6 |
M6 × 22 |
6 |
1.0 |
4000 |
167 |
963 |
|
YAN 90 × 2.0 |
120 |
8 |
108 |
6.4 |
32 |
11 |
6 |
M6 × 22 |
6 |
1.0 |
4200 |
255 |
1020 |
|
YAN 95 × 2.0 |
125 |
8 |
113 |
6.4 |
32 |
11 |
6 |
M6 × 22 |
6 |
1.0 |
4350 |
262 |
1050 |
|
YAN 100 × 2.0 |
130 |
8 |
118 |
6.4 |
32 |
11 |
6 |
M6 × 22 |
6 |
1.0 |
4500 |
268 |
1100 |
|
YAN 105 × 2.0 |
135 |
8 |
123 |
6.4 |
32 |
11 |
6 |
M6 × 22 |
6 |
1.0 |
4650 |
270 |
1150 |
|
YAN 110 × 2.0 |
140 |
8 |
128 |
6.4 |
32 |
11 |
6 |
M6 × 22 |
6 |
1.0 |
4800 |
280 |
1210 |
|
YAN 115 × 2.0 |
145 |
8 |
133 |
6.4 |
36 |
13 |
6 |
M6 × 25 |
6 |
1.0 |
4950 |
325 |
1430 |
|
YAN 120 × 2.0 |
155 |
8 |
140 |
6.4 |
36 |
13 |
6 |
M6 × 25 |
6 |
1.0 |
5100 |
403 |
1740 |
|
YAN 125 × 2.0 |
160 |
8 |
148 |
6.4 |
36 |
13 |
6 |
M6 × 25 |
6 |
1.0 |
5250 |
410 |
1820 |
|
YAN 130 × 3.0 |
165 |
8 |
153 |
6.4 |
36 |
13 |
6 |
M6 × 25 |
6 |
1.0 |
5450 |
400 |
1940 |
|
YAN 140 × 3.0 |
180 |
10 |
165 |
6.4 |
36 |
12 |
8 |
M6 × 25 |
8 |
1.0 |
5700 |
472 |
2335 |
|
YAN 150 × 3.0 |
190 |
10 |
175 |
6.4 |
36 |
12 |
8 |
M6 × 25 |
8 |
1.0 |
6000 |
485 |
2480 |
|
YAN 160 × 3.0 |
205 |
10 |
185 |
8.4 |
40 |
14 |
8 |
M8 × 30 |
8 |
2.5 |
6300 |
550 |
3380 |
|
YAN 170 × 3.0 |
215 |
10 |
195 |
8.4 |
40 |
14 |
8 |
M8 × 30 |
8 |
2.5 |
6650 |
555 |
3580 |
|
YAN 180 × 3.0 |
230 |
10 |
210 |
8.4 |
40 |
14 |
8 |
M8 × 30 |
8 |
2.5 |
7000 |
640 |
4110 |
|
YAN 190 × 3.0 |
240 |
10 |
224 |
8.4 |
40 |
14 |
8 |
M8 × 30 |
8 |
2.5 |
7300 |
650 |
4330 |
|
YAN 200 × 3.0 |
245 |
10 |
229 |
8.4 |
40 |
14 |
8 |
M8 × 30 |
8 |
2.5 |
7600 |
570 |
4410 |
