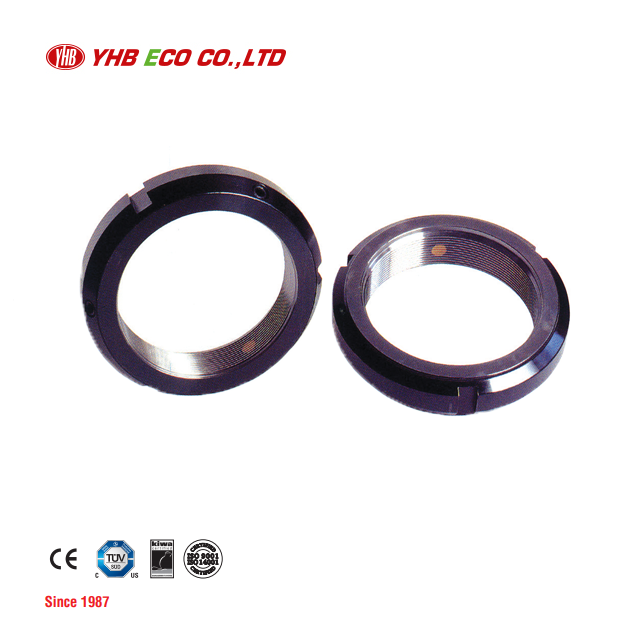

YHB 정밀로크너트 YHB26(M130X2)
ㅁ Features
- Material : DIN C45, JIS S45C, KS SM45C
- Hardness : HRC 20 ~ 25
- Nut Grade : Precision class
- Squarness of Nut Face : ⊥0.002~0.015
ㅁ Advantages
1. Thanks to enhanced flatness and roughness of reference plane by lapping work, YHB thpe fits
in shaft build-up which requires hight fixing dedree.
2. Three locking pins located in equal intervals enable the nut to be assembled with the
shaft exactly at appropriate angle and adjust the deviation properly.
3, Keeps a good balance thanks to the equal interval fluting of lock pin and hook spanner.
- Material : DIN C45, JIS S45C, KS SM45C
- Hardness : HRC 20 ~ 25
- Nut Grade : Precision class
- Squarness of Nut Face : ⊥0.002~0.015
ㅁ Advantages
1. Thanks to enhanced flatness and roughness of reference plane by lapping work, YHB thpe fits
in shaft build-up which requires hight fixing dedree.
2. Three locking pins located in equal intervals enable the nut to be assembled with the
shaft exactly at appropriate angle and adjust the deviation properly.
3, Keeps a good balance thanks to the equal interval fluting of lock pin and hook spanner.
63,250원
배송비
-
수량
주문 수량
0개
총 상품 금액
0원
쉽고 빠른
토스페이 간편결제
토스페이 간편결제
제품사양
|
PART NO |
THREAD & PITCH |
Dimension |
Axial Load (KN) |
Set Screw (Nm) |
Weight (g) |
|||||||
|
d1 |
b2 |
d3 |
d4 |
B |
g |
t |
m |
|||||
|
YHB 02 |
M 15 × 1 |
26 |
33 |
25 |
16 |
16 |
4 |
2.5 |
M5 |
60 |
4.5 |
85 |
|
YHB 03 |
M 17 × 1 |
29 |
37 |
30 |
18 |
18 |
5 |
2.5 |
M6 |
80 |
8 |
110 |
|
YHB 04 |
M 20 × 1 |
32 |
40 |
32 |
21 |
18 |
5 |
2.5 |
M6 |
90 |
8 |
120 |
|
YHB 05 |
M 25 ×1.5 |
36 |
44 |
36 |
26 |
20 |
5 |
2.5 |
M6 |
130 |
8 |
140 |
|
YHB 06 |
M 30 ×1.5 |
41 |
49 |
41 |
32 |
20 |
5 |
2.5 |
M6 |
160 |
8 |
180 |
|
YHB 07 |
M 35 ×1.5 |
46 |
54 |
46 |
38 |
22 |
5 |
2.5 |
M6 |
210 |
8 |
210 |
|
YHB 08 |
M 40 ×1.5 |
56 |
65 |
56 |
42 |
22 |
6 |
3 |
M6 |
240 |
8 |
330 |
|
YHB 09 |
M 45 ×1.5 |
61 |
70 |
61 |
48 |
22 |
6 |
3 |
M6 |
300 |
8 |
370 |
|
YHB 10 |
M 50 ×1.5 |
65 |
75 |
65 |
52 |
25 |
7 |
3 |
M6 |
340 |
8 |
450 |
|
YHB 11 |
M 55 × 2 |
74 |
85 |
75 |
58 |
25 |
7 |
3 |
M8 |
380 |
18 |
590 |
|
YHB 12 |
M 60 × 2 |
78 |
90 |
79 |
62 |
26 |
8 |
4 |
M8 |
460 |
18 |
670 |
|
YHB 13 |
M 65 × 2 |
83 |
95 |
84 |
68 |
28 |
8 |
4 |
M8 |
490 |
18 |
780 |
|
YHB 14 |
M 70 × 2 |
88 |
100 |
89 |
72 |
28 |
8 |
4 |
M8 |
520 |
18 |
830 |
|
YHB 15 |
M 75 × 2 |
93 |
105 |
94 |
77 |
28 |
8 |
4 |
M8 |
620 |
18 |
880 |
|
YHB 16 |
M 80 × 2 |
98 |
110 |
96 |
83 |
32 |
8 |
4 |
M8 |
650 |
18 |
990 |
|
YHB 17 |
M 85 × 2 |
107 |
120 |
106 |
88 |
32 |
10 |
4 |
M10 |
680 |
35 |
1270 |
|
YHB 18 |
M 90 × 2 |
112 |
125 |
111 |
93 |
32 |
10 |
4 |
M10 |
710 |
35 |
1320 |
|
YHB 19 |
M 95 × 2 |
117 |
130 |
116 |
98 |
32 |
10 |
4 |
M10 |
740 |
35 |
1380 |
|
YHB 20 |
M 100 × 2 |
122 |
135 |
121 |
103 |
32 |
10 |
4 |
M10 |
800 |
35 |
1430 |
|
YHB 22 |
M 110 × 2 |
132 |
145 |
130 |
112 |
32 |
10 |
4 |
M10 |
860 |
35 |
1600 |
|
YHB 24 |
M 120 × 2 |
142 |
155 |
140 |
122 |
32 |
10 |
4 |
M10 |
920 |
35 |
1760 |
|
YHB 26 |
M 130 × 2 |
152 |
165 |
150 |
132 |
32 |
12 |
5 |
M10 |
980 |
35 |
1870 |
|
YHB 28 |
M 140 × 2 |
162 |
175 |
160 |
142 |
32 |
14 |
6 |
M10 |
1040 |
35 |
1980 |
|
YHB 30 |
M 150 × 2 |
172 |
185 |
170 |
152 |
32 |
14 |
6 |
M10 |
1100 |
35 |
2150 |
|
YHB 32 |
M 160 × 2 |
182 |
195 |
180 |
162 |
32 |
14 |
6 |
M10 |
1160 |
35 |
2350 |
|
YHB 34 |
M 170 × 2 |
192 |
205 |
190 |
172 |
32 |
14 |
6 |
M10 |
1220 |
35 |
2550 |
|
YHB 36 |
M 180 × 2 |
202 |
215 |
200 |
182 |
32 |
16 |
7 |
M10 |
1280 |
35 |
2640 |
|
YHB 40 |
M 200 × 2 |
222 |
235 |
220 |
202 |
32 |
18 |
8 |
M10 |
1340 |
35 |
2850 |
