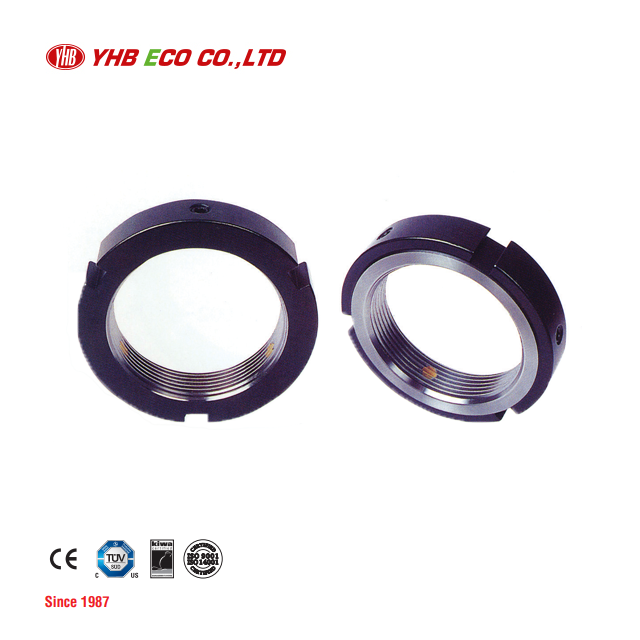

YHB 정밀로크너트 YZM12 (M12 × 1)

ㅁ Features
- Material : DIN C45, JIS S45C, KS SM45C
- Hardness : HRC 20 ~ 25
- Nut Grade : Precision class
- Squarness of Nut Face : ⊥0.002~0.015

ㅁ Advantages
- Three locking pins located in equal intervals enable the nut to be
assembled with the shaft at appropriate angle and adjus the deviation properly

- No need for a lock washer or fluting of shaft key

9,315원
수량
품절된 상품입니다.
주문 수량   0개
총 상품 금액 0원











제품사양































PART NO

THREAD & PITCH

Dimension

Axial Load

(KN)

Set Screw

(Nm)

Weight

(g)

øD

B

g

t

ød1

c

m

YZM 12

M 12 × 1.0

22

8

3

3

16

4

M4

26

3.5

14

YZM 15

M 15 × 1.0

25

8

3

3

19

4

M4

33

3.5

16

YZM 17

M 17 × 1.0

28

10

4

3

21

5

M5

49

4.5

24

YZM 20

M 20 × 1.0

32

10

4

3

25

5

M5

55

4.5

34

YZM 25

M 25 × 1.5

38

12

5

3

31

6

M6

87

8

54

YZM 30

M 30 × 1.5

45

12

5

3

38

6

M6

110

8

76

YZM 35

M 35 × 1.5

52

12

5

3

45

6

M6

120

8

102

YZM 40

M 40 × 1.5

58

14

6

3

50

7

M6

150

8

144

YZM 45

M 45 × 1.5

65

14

6

3

56

7

M6

170

8

180

YZM 50

M 50 × 1.5

70

14

6

3

61

7

M6

180

8

196

YZM 55

M 55 × 2.0

75

16

7

4

66

8

M6

250

8

240

YZM 60

M 60 × 2.0

80

16

7

4

70

8

M6

270

8

262

YZM 65

M 65 × 2.0

85

16

7

4

76

8

M6

290

8

282

YZM 70

M 70 × 2.0

92

18

8

4

82

9

M8

350

18

378

YZM 75

M 75 × 2.0

98

18

8

4

87

9

M8

370

18

422

YZM 80

M 80 × 2.0

105

18

8

4

92

9

M8

390

18

492

YZM 85

M 85 × 2.0

110

18

8

4

99

9

M8

400

18

524

YZM 90

M 90 × 2.0

120

20

10

4

105

10

M8

470

18

750

YZM 95

M 95 × 2.0

125

20

10

4

110

10

M8

490

18

782

YZM 100

M 100 × 2.0

130

20

10

4

116

10

M8

510

18

826

YZM 105

M 105 × 2.0

140

22

12

5

122

11

M10

560

35

1108

YZM 110

M 110 × 2.0

145

22

12

5

129

11

M10

600

35

1164

YZM 120

M 120 × 2.0

155

24

12

5

136

12

M10

710

35

1378

YZM 130

M 130 × 2.0

165

24

12

5

145

12

M10

760

35

1480

YZM 140

M 140 × 2.0

180

26

14

6

156

13

M12

880

60

1958

YZM 150

M 150 × 2.0

195

26

14

6

167

13

M12

930

60

2404

YZM 160

M 160 × 3.0

210

28

16

7

178

14

M12

980

60

3080

YZM 170

M 170 × 3.0

220

28

16

7

189

14

M12

1130

60

3256

YZM 180

M 180 × 3.0

230

30

18

8

199

15

M12

1300

60

3628

YZM 190

M 190 × 3.0

240

30

18

8

210

15

M12

1470

60

3928

YZM 200

M 200 × 3.0

250

32

18

8

222

16

M12

1600

60

4330
