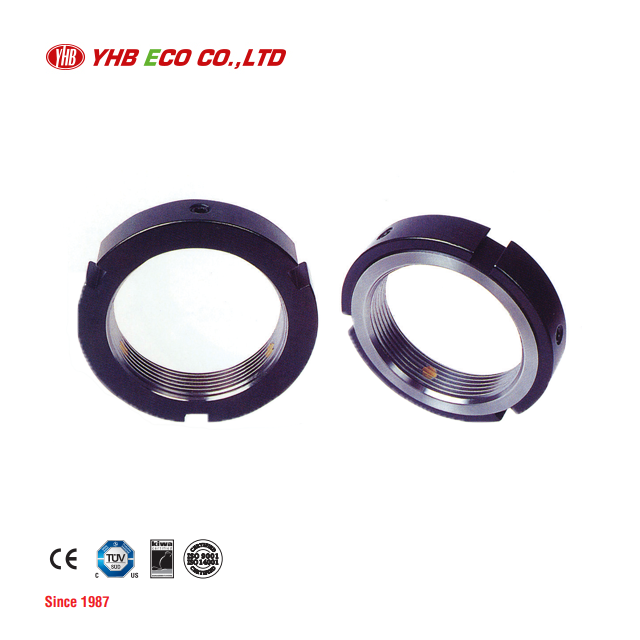

YHB 정밀로크너트 YZM20 (M20 × 1.0)
ㅁ Features
- Material : DIN C45, JIS S45C, KS SM45C
- Hardness : HRC 20 ~ 25
- Nut Grade : Precision class
- Squarness of Nut Face : ⊥0.002~0.015
ㅁ Advantages
- Three locking pins located in equal intervals enable the nut to be
assembled with the shaft at appropriate angle and adjus the deviation properly
- No need for a lock washer or fluting of shaft key
- Material : DIN C45, JIS S45C, KS SM45C
- Hardness : HRC 20 ~ 25
- Nut Grade : Precision class
- Squarness of Nut Face : ⊥0.002~0.015
ㅁ Advantages
- Three locking pins located in equal intervals enable the nut to be
assembled with the shaft at appropriate angle and adjus the deviation properly
- No need for a lock washer or fluting of shaft key
11,765원
배송비
-
수량
주문 수량
0개
총 상품 금액
0원
쉽고 빠른
토스페이 간편결제
토스페이 간편결제
제품사양
|
PART NO |
THREAD & PITCH |
Dimension |
Axial Load (KN) |
Set Screw (Nm) |
Weight (g) |
||||||
|
øD |
B |
g |
t |
ød1 |
c |
m |
|||||
|
YZM 12 |
M 12 × 1.0 |
22 |
8 |
3 |
3 |
16 |
4 |
M4 |
26 |
3.5 |
14 |
|
YZM 15 |
M 15 × 1.0 |
25 |
8 |
3 |
3 |
19 |
4 |
M4 |
33 |
3.5 |
16 |
|
YZM 17 |
M 17 × 1.0 |
28 |
10 |
4 |
3 |
21 |
5 |
M5 |
49 |
4.5 |
24 |
|
YZM 20 |
M 20 × 1.0 |
32 |
10 |
4 |
3 |
25 |
5 |
M5 |
55 |
4.5 |
34 |
|
YZM 25 |
M 25 × 1.5 |
38 |
12 |
5 |
3 |
31 |
6 |
M6 |
87 |
8 |
54 |
|
YZM 30 |
M 30 × 1.5 |
45 |
12 |
5 |
3 |
38 |
6 |
M6 |
110 |
8 |
76 |
|
YZM 35 |
M 35 × 1.5 |
52 |
12 |
5 |
3 |
45 |
6 |
M6 |
120 |
8 |
102 |
|
YZM 40 |
M 40 × 1.5 |
58 |
14 |
6 |
3 |
50 |
7 |
M6 |
150 |
8 |
144 |
|
YZM 45 |
M 45 × 1.5 |
65 |
14 |
6 |
3 |
56 |
7 |
M6 |
170 |
8 |
180 |
|
YZM 50 |
M 50 × 1.5 |
70 |
14 |
6 |
3 |
61 |
7 |
M6 |
180 |
8 |
196 |
|
YZM 55 |
M 55 × 2.0 |
75 |
16 |
7 |
4 |
66 |
8 |
M6 |
250 |
8 |
240 |
|
YZM 60 |
M 60 × 2.0 |
80 |
16 |
7 |
4 |
70 |
8 |
M6 |
270 |
8 |
262 |
|
YZM 65 |
M 65 × 2.0 |
85 |
16 |
7 |
4 |
76 |
8 |
M6 |
290 |
8 |
282 |
|
YZM 70 |
M 70 × 2.0 |
92 |
18 |
8 |
4 |
82 |
9 |
M8 |
350 |
18 |
378 |
|
YZM 75 |
M 75 × 2.0 |
98 |
18 |
8 |
4 |
87 |
9 |
M8 |
370 |
18 |
422 |
|
YZM 80 |
M 80 × 2.0 |
105 |
18 |
8 |
4 |
92 |
9 |
M8 |
390 |
18 |
492 |
|
YZM 85 |
M 85 × 2.0 |
110 |
18 |
8 |
4 |
99 |
9 |
M8 |
400 |
18 |
524 |
|
YZM 90 |
M 90 × 2.0 |
120 |
20 |
10 |
4 |
105 |
10 |
M8 |
470 |
18 |
750 |
|
YZM 95 |
M 95 × 2.0 |
125 |
20 |
10 |
4 |
110 |
10 |
M8 |
490 |
18 |
782 |
|
YZM 100 |
M 100 × 2.0 |
130 |
20 |
10 |
4 |
116 |
10 |
M8 |
510 |
18 |
826 |
|
YZM 105 |
M 105 × 2.0 |
140 |
22 |
12 |
5 |
122 |
11 |
M10 |
560 |
35 |
1108 |
|
YZM 110 |
M 110 × 2.0 |
145 |
22 |
12 |
5 |
129 |
11 |
M10 |
600 |
35 |
1164 |
|
YZM 120 |
M 120 × 2.0 |
155 |
24 |
12 |
5 |
136 |
12 |
M10 |
710 |
35 |
1378 |
|
YZM 130 |
M 130 × 2.0 |
165 |
24 |
12 |
5 |
145 |
12 |
M10 |
760 |
35 |
1480 |
|
YZM 140 |
M 140 × 2.0 |
180 |
26 |
14 |
6 |
156 |
13 |
M12 |
880 |
60 |
1958 |
|
YZM 150 |
M 150 × 2.0 |
195 |
26 |
14 |
6 |
167 |
13 |
M12 |
930 |
60 |
2404 |
|
YZM 160 |
M 160 × 3.0 |
210 |
28 |
16 |
7 |
178 |
14 |
M12 |
980 |
60 |
3080 |
|
YZM 170 |
M 170 × 3.0 |
220 |
28 |
16 |
7 |
189 |
14 |
M12 |
1130 |
60 |
3256 |
|
YZM 180 |
M 180 × 3.0 |
230 |
30 |
18 |
8 |
199 |
15 |
M12 |
1300 |
60 |
3628 |
|
YZM 190 |
M 190 × 3.0 |
240 |
30 |
18 |
8 |
210 |
15 |
M12 |
1470 |
60 |
3928 |
|
YZM 200 |
M 200 × 3.0 |
250 |
32 |
18 |
8 |
222 |
16 |
M12 |
1600 |
60 |
4330 |
