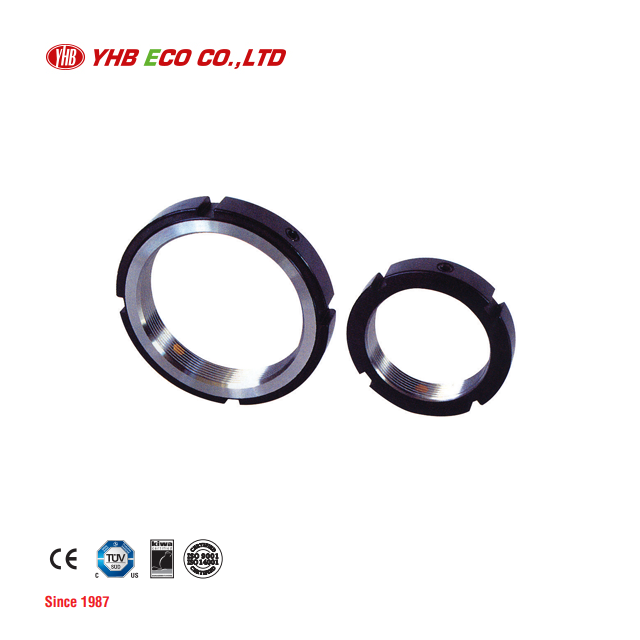

YHB 정밀로크너트 ZM170 (M170 × 3)
ㅁ Features
- Material : DIN C45, JIS S45C, KS SM45C
- Hardness : HRC 20 ~ 25
- Nut Grade : Precision class
- Squarness of Nut Face : ⊥0.002~0.015
1. Keeps a good balnce thanks to the equal interval fluting of lock pin and hook spanner slots.
2. Because improving the smoothness and flatness through lapping process it is fit for the shaft
built up which requires a high fixing degree.
- Material : DIN C45, JIS S45C, KS SM45C
- Hardness : HRC 20 ~ 25
- Nut Grade : Precision class
- Squarness of Nut Face : ⊥0.002~0.015
1. Keeps a good balnce thanks to the equal interval fluting of lock pin and hook spanner slots.
2. Because improving the smoothness and flatness through lapping process it is fit for the shaft
built up which requires a high fixing degree.
151,800원
배송비
-
수량
주문 수량
0개
총 상품 금액
0원
쉽고 빠른
토스페이 간편결제
토스페이 간편결제
제품사양
|
PART NO |
THREAD & PITCH |
Dimension |
Axial Load (KN) |
Set Screw (Nm) |
Weight (g) |
||||||
|
øD |
B |
g |
t |
d1 |
c |
m |
|||||
|
ZM 8 |
M 8 × 0.75 |
16 |
8 |
3 |
2 |
12 |
4 |
M4 |
18 |
2 |
4 |
|
ZM 10 |
M 10 × 1 |
18 |
8 |
3 |
2 |
14 |
4 |
M4 |
22 |
3.5 |
8 |
|
ZM 12 |
M 12 × 1 |
22 |
8 |
3 |
3 |
16 |
4 |
M4 |
26 |
3.5 |
14 |
|
ZM 15 |
M 15 × 1 |
25 |
8 |
3 |
3 |
19 |
4 |
M4 |
33 |
3.5 |
16 |
|
ZM 17 |
M 17 × 1 |
28 |
10 |
4 |
3 |
21 |
5 |
M5 |
49 |
4.5 |
24 |
|
ZM 20 |
M 20 × 1 |
32 |
10 |
4 |
3 |
25 |
5 |
M5 |
55 |
4.5 |
34 |
|
ZM 25 |
M 25 × 1.5 |
38 |
12 |
5 |
3 |
31 |
6 |
M6 |
87 |
8 |
54 |
|
ZM 30 |
M 30 × 1.5 |
45 |
12 |
5 |
3 |
38 |
6 |
M6 |
110 |
8 |
76 |
|
ZM 35 |
M 35 × 1.5 |
52 |
12 |
5 |
3 |
45 |
6 |
M6 |
120 |
8 |
102 |
|
ZM 40 |
M 40 × 1.5 |
58 |
14 |
6 |
3 |
50 |
7 |
M6 |
150 |
8 |
144 |
|
ZM 45 |
M 45 × 1.5 |
65 |
14 |
6 |
3 |
56 |
7 |
M6 |
170 |
8 |
180 |
|
ZM 50 |
M 50 × 1.5 |
70 |
14 |
6 |
3 |
61 |
7 |
M6 |
180 |
8 |
196 |
|
ZM 55 |
M 55 × 2 |
75 |
16 |
7 |
4 |
66 |
8 |
M6 |
250 |
8 |
240 |
|
ZM 60 |
M 60 × 2 |
80 |
16 |
7 |
4 |
70 |
8 |
M6 |
270 |
8 |
262 |
|
ZM 65 |
M 65 × 2 |
85 |
16 |
7 |
4 |
76 |
8 |
M6 |
290 |
8 |
282 |
|
ZM 70 |
M 70 × 2 |
92 |
18 |
8 |
4 |
82 |
9 |
M8 |
350 |
18 |
378 |
|
ZM 75 |
M 75 × 2 |
98 |
18 |
8 |
4 |
87 |
9 |
M8 |
370 |
18 |
422 |
|
ZM 80 |
M 80 × 2 |
105 |
18 |
8 |
4 |
92 |
9 |
M8 |
390 |
18 |
492 |
|
ZM 85 |
M 85 × 2 |
110 |
18 |
8 |
4 |
99 |
9 |
M8 |
400 |
18 |
524 |
|
ZM 90 |
M 90 × 2 |
120 |
20 |
10 |
4 |
105 |
10 |
M8 |
470 |
18 |
750 |
|
ZM 95 |
M 95 × 2 |
125 |
20 |
10 |
4 |
110 |
10 |
M8 |
490 |
18 |
782 |
|
ZM 100 |
M 100 × 2 |
130 |
20 |
10 |
4 |
116 |
10 |
M8 |
510 |
18 |
826 |
|
ZM 105 |
M 105 × 2 |
140 |
22 |
12 |
5 |
122 |
11 |
M10 |
560 |
35 |
1108 |
|
ZM 110 |
M 110 × 2 |
145 |
22 |
12 |
5 |
129 |
11 |
M10 |
600 |
35 |
1164 |
|
ZM 120 |
M 120 × 2 |
155 |
24 |
12 |
5 |
136 |
12 |
M10 |
710 |
35 |
1378 |
|
ZM 130 |
M 130 × 2 |
165 |
24 |
12 |
5 |
145 |
12 |
M10 |
760 |
35 |
1480 |
|
ZM 140 |
M 140 × 2 |
180 |
26 |
14 |
6 |
156 |
13 |
M12 |
880 |
60 |
1958 |
|
ZM 150 |
M 150 × 2 |
195 |
26 |
14 |
6 |
167 |
13 |
M12 |
930 |
60 |
2404 |
|
ZM 160 |
M 160 × 3 |
210 |
28 |
16 |
7 |
178 |
14 |
M12 |
980 |
60 |
3080 |
|
ZM 170 |
M 170 × 3 |
220 |
28 |
16 |
7 |
189 |
14 |
M12 |
1130 |
60 |
3256 |
|
ZM 180 |
M 180 × 3 |
230 |
30 |
18 |
8 |
199 |
15 |
M12 |
1300 |
60 |
3628 |
|
ZM 190 |
M 190 × 3 |
240 |
30 |
18 |
8 |
210 |
15 |
M12 |
1470 |
60 |
3928 |
|
ZM 200 |
M 200 × 3 |
250 |
32 |
18 |
8 |
222 |
16 |
M12 |
1600 |
60 |
4330 |
