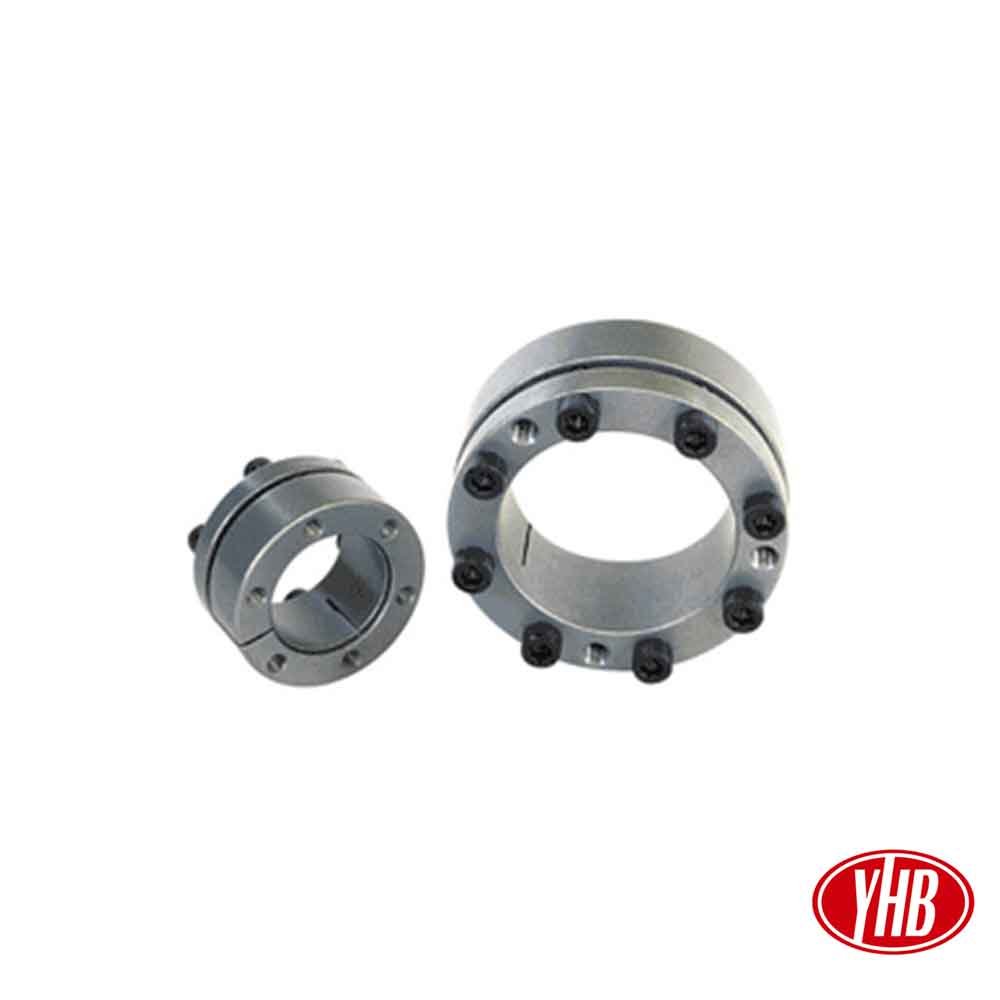

SWLE200A

d X D

Dimension

Champ Bolts

Transmissioniable

Surface Pressure

Weight(g)

L

L3

L2

L1

D

Holes

Thread

Torque

Torque

Mt(kgf-m)

Axial LoadPax(kgf)

Shaftkgf/mm2

Basskgf/mm2

19×47

38

32

24

20

47

6

M6×22

1.6

30

3100

30.4

9.8

325

20×47

38

32

24

20

47

6

M6×22

1.6

31

3100

28.8

9.8

315

22×47

38

32

24

20

47

6

M6×22

1.6

34

3100

26.2

9.8

305

24×50

38

32

24

20

50

7

M6×22

1.6

47

3900

30.0

11.5

345

25×50

38

32

24

20

50

7

M6×22

1.6

49

3900

28.8

11.5

335

28×55

38

32

24

20

55

7

M6×22

1.6

55

3900

25.7

10.5

395

30×55

38

32

24

20

55

7

M6×22

1.6

59

3900

24.0

10.5

375

32×60

38

32

24

20

60

9

M6×22

1.6

75

4650

27.0

11.5

455

35×60

38

32

24

20

60

9

M6×22

1.6

82

4650

24.7

11.5

420

38×65

38

32

24

20

65

9

M6×22

1.6

89

4650

22.7

10.6

490

40×65

38

32

24

20

65

9

M6×22

1.6

93

4650

21.6

10.6

465

42×75

48

40

29

24

75

9

M8×30

3.9

181

8600

31.9

14.2

855

45×75

48

40

29

24

75

9

M8×30

3.9

194

8600

29.8

14.2

795

48×80

48

40

29

24

80

9

M8×30

3.9

207

8600

27.9

13.3

905

50×80

48

40

29

24

80

9

M8×30

3.9

216

8600

26.8

13.3

860

55×85

48

40

29

24

85

10

M8×30

3.9

277

10000

28.4

14.6

935

60×90

48

40

29

24

90

10

M8×30

3.9

302

10000

26.0

13.8

1000

65×95

48

40

29

24

95

12

M8×30

3.9

374

11500

27.5

14.9

1070

70×110

62

52

37

30

110

10

M10×40

7.5

554

15800

29.0

14.2

2060

75×115

62

52

37

30

115

10

M10×40

7.5

594

15800

27.0

13.5

2170

80×120

62

52

37

30

120

10

M10×40

7.5

633

15800

25.4

13.0

2280

85×125

62

52

37

30

125

12

M10×40

7.5

769

18000

27.3

14.3

2400

90×130

62

52

37

30

130

12

M10×40

7.5

814

18000

25.8

13.7

2510

95×135

62

52

37

30

135

14

M10×40

7.5

1074

25000

30.5

16.5

2650

100×145

74

64

46

39

145

15

M10×40

7.5

1130

25000

20.9

11.8

3950
