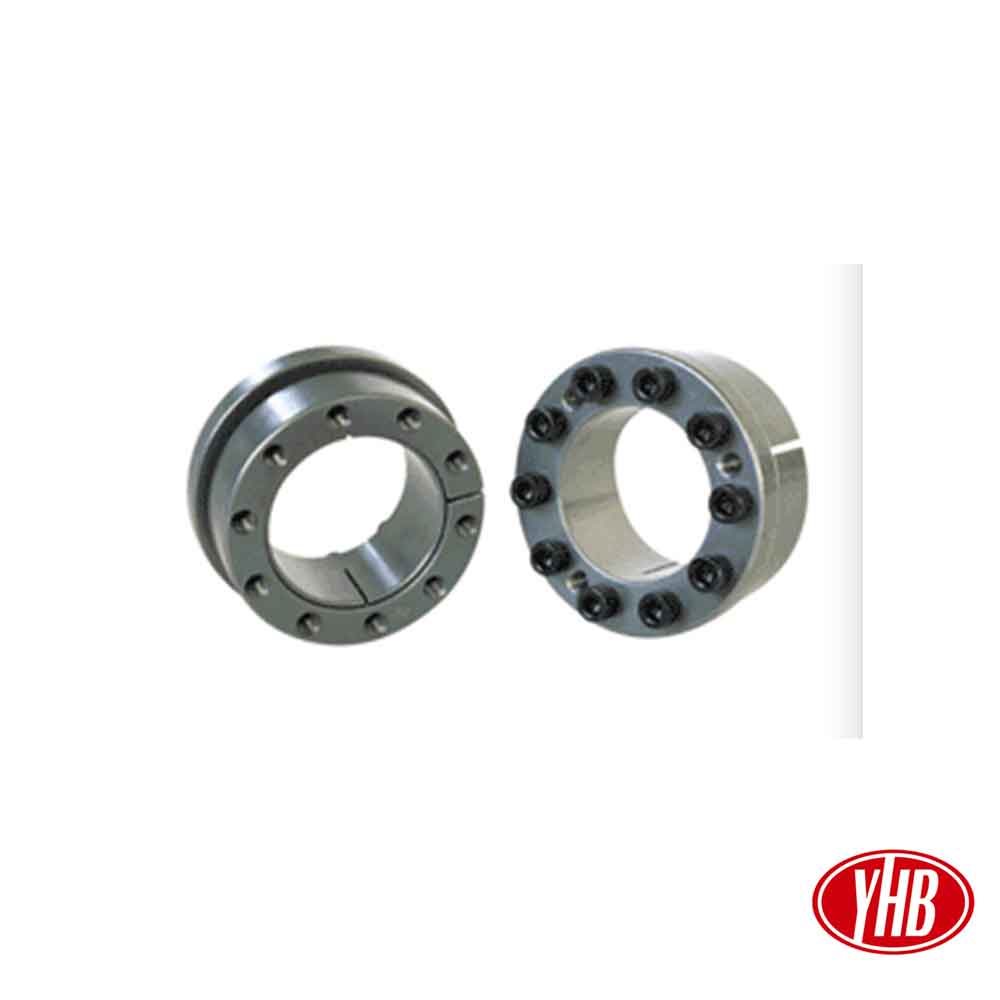

SWLE200B

d X D

Dimension

Champ Bolts

Transmissioniable

Surface Pressure

Weight(g)

L

L3

L2

L1

D

D1

Holes

Thread

Torque

Torque

Mt(kgf-m)

Axial LoadPax(kgf)

Shaftkgf/mm2

Basskgf/mm2

8×22

21

17

13

10

22

25

3

M4×15

0.39

1.8

470

27.9

7.1

45

9×23

21

17

13

10

23

26

3

M4×15

0.39

2.1

470

24.8

6.8

50

10×24

21

17

13

10

24

27

4

M4×15

0.39

3.0

620

30.0

8.7

53

11×25

21

17

13

10

25

28

4

M4×15

0.39

3.4

620

27.0

8.4

56

12×26

21

17

13

10

26

29

5

M4×15

0.39

4.7

780

31.0

10.0

60

13×27

21

17

13

10

27

30

5

M4×15

0.39

5.0

750

28.6

9.7

63

14×31

26

21

16

12.5

31

34

4

M5×15

0.8

7.0

1000

26.6

8.7

100

15×32

26

21

16

12.5

32

35

4

M5×15

0.8

7.5

1000

24.8

8.4

105

16×33

26

21

16

12.5

33

36

4

M5×15

0.8

8.0

1000

23.2

8.1

110

17×34

26

21

16

12.5

34

37

5

M5×15

0.8

10.5

1250

27.3

9.9

115

18×35

26

21

16

12.5

35

38

5

M5×15

0.8

11.0

1250

25.8

9.6

120

19×47

38

32

24

20

47

53

6

M6×22

1.6

29

3000

29.0

9.4

355

20×47

38

32

24

20

47

53

6

M6×22

1.6

30

3000

27.5

9.4

350

22×47

38

32

24

20

47

53

6

M6×22

1.6

33

3000

25.0

9.4

335

24×50

38

32

24

20

50

56

7

M6×22

1.6

42

3450

26.7

10.3

380

25×50

38

32

24

20

50

56

7

M6×22

1.6

44

3450

25.7

10.3

370

28×55

38

32

24

20

55

62

7

M6×22

1.6

48

3450

22.9

9.4

440

30×55

38

32

24

20

55

62

7

M6×22

1.6

52

3450

21.4

9.4

425

32×60

38

32

24

20

60

68

9

M6×22

1.6

71

4450

25.8

11.0

510

35×60

38

32

24

20

60

68

9

M6×22

1.6

78

4450

23.6

11.0

475

38×65

38

32

24

20

65

73

9

M6×22

1.6

85

4450

21.7

10.0

550

40×65

38

32

24

20

65

73

9

M6×22

1.6

90

4450

20.6

10.2

520

42×75

48

40

29

24

75

83

9

M8×30

3.9

173

8200

30.5

13.5

955

45×75

48

40

29

24

75

83

9

M8×30

3.9

185

8200

28.4

13.5

900

48×80

48

40

29

24

80

88

9

M8×30

3.9

198

8200

26.7

12.7

1010

50×80

48

40

29

24

80

88

9

M8×30

3.9

206

8200

25.6

12.7

950

55×85

48

40

29

24

85

94

10

M8×30

3.9

252

9100

25.8

13.2

1060

60×90

48

40

29

24

90

99

10

M8×30

3.9

275

9100

23.7

12.5

1130

65×95

48

40

29

24

95

104

12

M8×30

3.9

357

11000

26.3

14.2

1220

70×110

62

52

37

30

110

119

10

M10×40

7.5

504

14400

26.4

12.9

2280

75×115

62

52

37

30

115

124

10

M10×40

7.5

540

14400

24.6

12.3

2400

80×120

62

52

37

30

120

129

10

M10×40

7.5

575

14400

23

11.8

2520

85×125

62

52

37

30

125

134

12

M10×40

7.5

734

17000

26

13.6

2660

90×130

62

52

37

30

130

139

12

M10×40

7.5

775

17000

24.6

13.0

2780

95×135

62

52

37

30

135

144

14

M10×40

7.5

955

20000

27.2

14.7

2980

100×145

74

64

46

39

145

154

15

M10×40

7.5

1080

21000

19.9

11.3

4300
