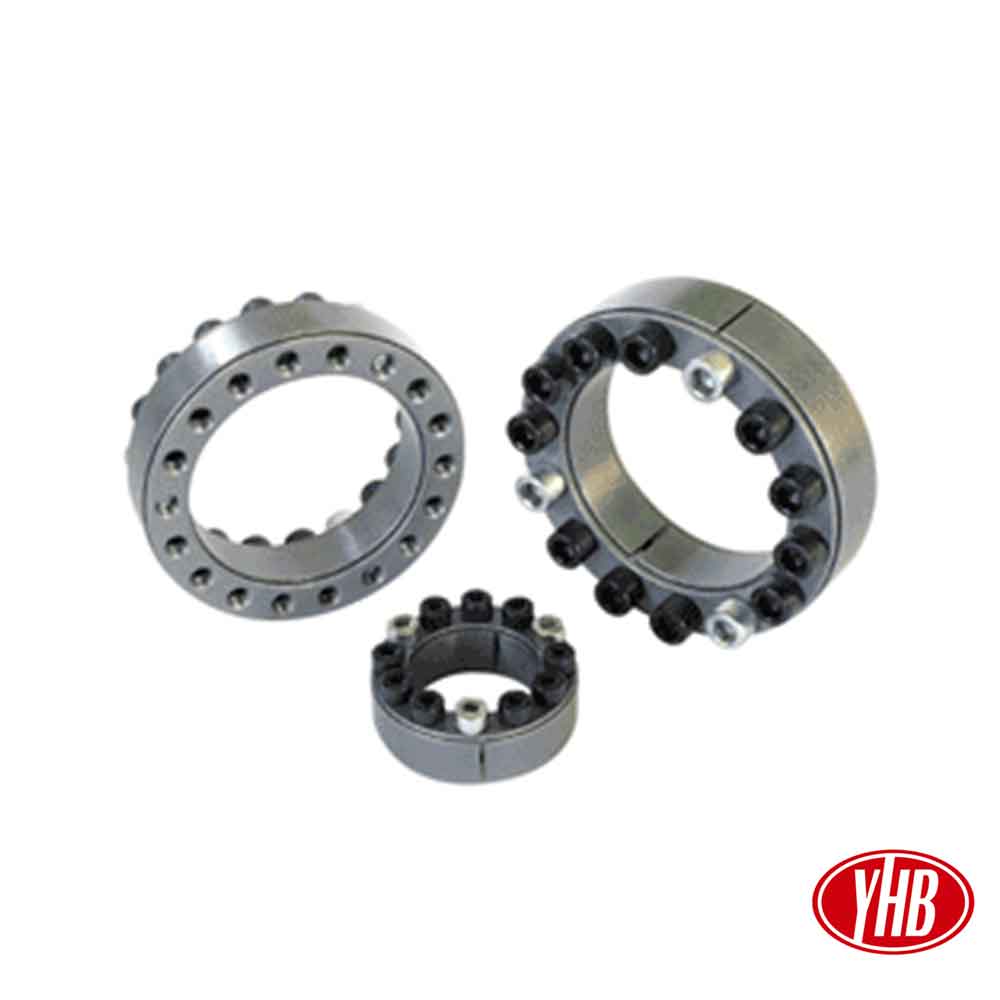

YHB 파워락,POWERLOCK SWLE200(90X130)
ㅁ Adbeantages
- SWLE200 can be used in connection the
shaft and boss when it requires a high trans-missible torque.
- Easy assembling and no need for other parts.
- No axial movement during assembly.
- Required shaft : Ø 20 ~ Ø 240mm
ㅁ Features
- Material : DIN C45, JIS S45C, KS SM45C
- Hardness : HRC 20 ~ 25
- Surface treatment : Barrel grinding
- SWLE200 can be used in connection the
shaft and boss when it requires a high trans-missible torque.
- Easy assembling and no need for other parts.
- No axial movement during assembly.
- Required shaft : Ø 20 ~ Ø 240mm
ㅁ Features
- Material : DIN C45, JIS S45C, KS SM45C
- Hardness : HRC 20 ~ 25
- Surface treatment : Barrel grinding
93,500원
배송비
-
수량
주문 수량
0개
총 상품 금액
0원
쉽고 빠른
토스페이 간편결제
토스페이 간편결제
제품사양
|
SWLE200 d X D |
Dimension |
Transmissioniable |
Surface Pressure |
Bolts |
Weight(g) |
||||||
|
L |
L1 |
B |
TorqueMt(kgf-m) |
Axial LoadPax(kgf) |
Shaftkgf/mm2 |
Basskgf/mm2 |
Holes |
Thread Dia |
Torque(kgf-m) |
||
|
20×47 |
20 |
17 |
26 |
27 |
2760 |
27 |
11 |
8 |
M6 |
1.4 |
208 |
|
22×47 |
20 |
17 |
26 |
30 |
2760 |
24.5 |
11.5 |
8 |
M6 |
1.4 |
198 |
|
24×50 |
20 |
17 |
26 |
37 |
3110 |
25 |
12 |
9 |
M6 |
1.4 |
216 |
|
25×50 |
20 |
17 |
26 |
39 |
3110 |
24 |
12 |
9 |
M6 |
1.4 |
210 |
|
28×55 |
20 |
17 |
26 |
48 |
3450 |
24 |
12 |
10 |
M6 |
1.4 |
256 |
|
30×55 |
20 |
17 |
26 |
52 |
3460 |
22.5 |
12.5 |
10 |
M6 |
1.4 |
244 |
|
32×60 |
20 |
17 |
26 |
66 |
4150 |
25 |
13.5 |
12 |
M6 |
1.4 |
294 |
|
35×60 |
20 |
17 |
26 |
72 |
4150 |
23 |
13.5 |
12 |
M6 |
1.4 |
276 |
|
38×65 |
20 |
17 |
26 |
91 |
4840 |
25 |
14.5 |
14 |
M6 |
1.4 |
320 |
|
40×65 |
20 |
17 |
26 |
96 |
4840 |
23.5 |
14.5 |
14 |
M6 |
1.4 |
308 |
|
42×75 |
24 |
20 |
32 |
158 |
7520 |
30 |
17 |
12 |
M8 |
3.4 |
556 |
|
45×75 |
24 |
20 |
32 |
170 |
7520 |
28 |
17 |
12 |
M8 |
3.4 |
522 |
|
48×80 |
24 |
20 |
32 |
181 |
7520 |
26 |
15.5 |
12 |
M8 |
3.4 |
578 |
|
50×80 |
24 |
20 |
32 |
190 |
7520 |
25 |
15.5 |
12 |
M8 |
3.4 |
564 |
|
55×85 |
24 |
20 |
32 |
242 |
8800 |
26.5 |
17 |
14 |
M8 |
3.4 |
610 |
|
60×90 |
24 |
20 |
32 |
264 |
8800 |
24.5 |
16 |
14 |
M8 |
3.4 |
644 |
|
65×95 |
24 |
20 |
32 |
327 |
10000 |
26 |
17.5 |
16 |
M8 |
3.4 |
690 |
|
70×110 |
28 |
24 |
38 |
480 |
13600 |
27 |
17 |
14 |
M10 |
6.6 |
1214 |
|
75×115 |
28 |
24 |
38 |
510 |
13600 |
25 |
16.5 |
14 |
M10 |
6.6 |
1280 |
|
80×120 |
28 |
24 |
38 |
540 |
13600 |
24 |
16 |
14 |
M10 |
6.6 |
1346 |
|
85×125 |
28 |
24 |
38 |
660 |
15600 |
25.5 |
17.5 |
16 |
M10 |
6.6 |
1424 |
|
90×130 |
28 |
24 |
38 |
700 |
15600 |
24 |
16.5 |
16 |
M10 |
6.6 |
1472 |
|
95×135 |
28 |
24 |
38 |
830 |
17600 |
25.5 |
18 |
18 |
M10 |
6.6 |
1546 |
|
100×145 |
33 |
26 |
45 |
990 |
19800 |
25.5 |
17.5 |
14 |
M12 |
11.5 |
2132 |
|
110×155 |
33 |
26 |
45 |
1090 |
19800 |
23 |
16.5 |
14 |
M12 |
11.5 |
2306 |
|
120×165 |
33 |
26 |
45 |
1360 |
22700 |
24 |
17.5 |
16 |
M12 |
11.5 |
2400 |
|
130×180 |
38 |
34 |
50 |
1840 |
28400 |
21.5 |
15.5 |
20 |
M12 |
11.5 |
3500 |
|
140×190 |
38 |
34 |
50 |
2180 |
31200 |
22 |
16 |
22 |
M12 |
11.5 |
3848 |
|
150×200 |
38 |
34 |
50 |
2550 |
34000 |
22 |
16.5 |
24 |
M12 |
11.5 |
4100 |
|
160×210 |
38 |
34 |
50 |
2950 |
36900 |
22.5 |
17 |
26 |
M12 |
11.5 |
4400 |
|
170×225 |
44 |
38 |
58 |
3560 |
41900 |
21.5 |
16.5 |
22 |
M14 |
18.0 |
5800 |
|
180×235 |
44 |
38 |
58 |
4110 |
45700 |
22 |
17 |
24 |
M14 |
18.0 |
6100 |
|
190×250 |
52 |
46 |
66 |
5060 |
53300 |
20 |
15.5 |
28 |
M14 |
18.0 |
8300 |
|
200×260 |
52 |
46 |
66 |
5710 |
57100 |
20.5 |
16 |
30 |
M14 |
18.0 |
8700 |
|
220×285 |
56 |
50 |
72 |
7410 |
67400 |
20.5 |
15.5 |
26 |
M16 |
28.0 |
11300 |
|
240×305 |
56 |
50 |
72 |
9330 |
77800 |
21.5 |
17 |
30 |
M16 |
28.0 |
12200 |
